PART # 417



Inventory

Request

Description

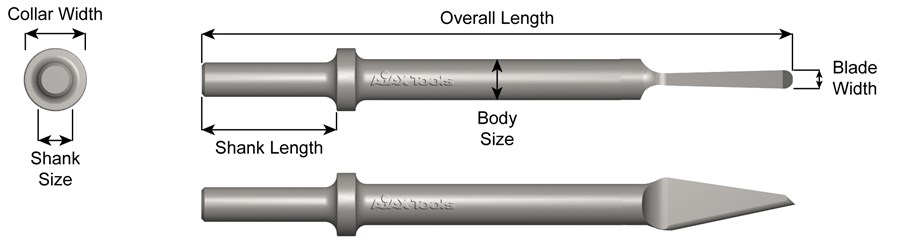

    9 in (228.6 mm); Round Shank, Round Collar; 13/16 in (20.6 mm) Body; Round Nose Chisel

$16.20
417
Enlarge View
Product Type
Chisels
Blade Width
3/8 in (9.5 mm)
Body Size
13/16 in (20.6 mm)
Collar Width
1-1/4 in (31.8 mm)
Overall Length
9 in (228.6 mm)
Product Weight
1.000 lbs (0.5 kg)
Shank Length
2-1/2 in (63.5 mm)
Shank Size
0.680 in (17.3 mm)
eye_protection
TAKE THE TIME
TO WORK SAFELY!
SAFETY WARNINGS ARE AVAILABLE BY CLICKING ON THE SAFETY TAB ON THIS PAGE.
WARNING_HEARING




Safety_thumbnailSafety_Sheet_thumnail

Industrial:

1. Foundries and Steel Mills use these chisels to chip castings, slag from ladles, and refractory liners from furnaces.

Construction:

1. Construction Crews use these chisels to chip or cut concrete on roads and bridges.

Wear Safety Goggles and ALL other Appropriate Gear.

The Nose bushings in the hammer are a wear item.  Worn nose bushings will lead to breakage in the shank of the chisel.

Keep chisel tight against work surface.

Inspect and maintain the chisel retainer that connects to the pneumatic hammer to retain the chisel during operation.

Ajax Chipping Hammer Chisels are manufactured from both alloy and carbon steel. These chisels are available in various shank styles, blade widths, and lengths. This class of tools are used in 15 lb. Pneumatic chipping hammers to cut or chip metal or concrete.
